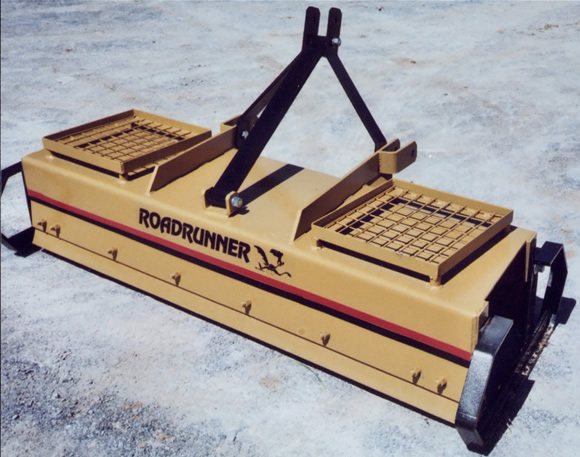

Economy Model (RT Series)
Category I, 3 point hitch, 5/16 frame, heavy duty reinforced moldboard with dual 5/8" bolt-on standard highway punch motor grader edges, and adjustable skid bars.
Built rugged for demanding job conditions. Unique ability to grade over imbedded rock. Low acquisition cost. Contributes to low owing and operating cost.
Features the proven twin blade configuration with blades that run at a slight angle to eliminate wash-boarding. Distance between the front and rear blades (17") prevents dipping and gauging. Adjustable skid bars assist in smooth leveling characteristics. Skid bars adjust on each side to maintain a crown. Works like a little dozer when pushed backwards. Great for knocking down piles of gravel and top soil or back filling gullies and washouts.
| Grading Width | Weight | FOB Bel Air, MD |
|---|---|---|
5' |
500 lbs |
$1,275 |
6' |
575 lbs |
$1,400 |
7' |
650 lbs |
$1525 |
Many of our competitors’ graders do not provide a way to adjust the grading height. In these graders the depth of cut changes as the blade wears. They typically use reversible, center-punched cutting edges. That is, the holes where the blade attaches to the mold board are punched in the center of the blade. When the bottom edge wears out, the operator must detach it and reverse the blade. On our models the grading height is fully adjustable. Our cutting edges are top-punched so that the top of the blade (not the center) attaches to the mold board. Thus as the blade wears, the operator can simply adjust the depth of cut to maintain the grading height and can get the full wear out of the blade without having to reverse it.
* Motor grader edges are available from any local heavy equipment dealer that sells motor graders.
