Skid steer Models (CJ & CH Series) for skid steers or 22 to 50 hp tractors.
Category I 3 point hitch, or universal mounting plate for skid steer, dual blade configuration with dual 5/8" bolt-on standard highway punch motor grader edges, side pans with replaceable runners with heat treated wear strips on four corners, three 3 " cross members bolted to side panels with high grade bolts.
Independent grading height adjustment on each side allows you to maintain a crown.
CJ model has twin manual screw jacks for height adjustment. Many of our competitors’ graders do not provide a way to adjust the grading height. In these graders the depth of cut changes as the blade wears. They typically use reversible, center-punched cutting edges. That is, the holes where the blade attaches to the mold board are punched in the center of the blade. When the bottom edge wears out, the operator must detach it and reverse the blade.
On our models the grading height is fully adjustable. Our cutting edges are top-punched so that the top of the blade (not the center) attaches to the mold board. Thus as the blade wears, the operator can simply adjust the depth of cut to maintain the grading height and can get the full wear out of the blade without having to reverse it.

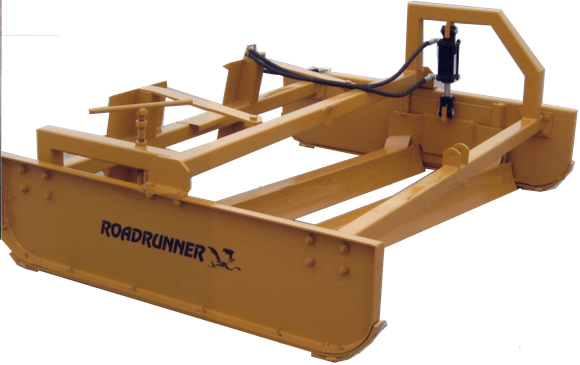

CH model has a hydraulic tilt strut , which controls the lead cutting edge and manual screw jacks that controls the trailing edge.
Motor grader edges are available from any local heavy equipment dealer that sells motor graders.
| Blade Width | Weight | Width | Length | Height |
|---|---|---|---|---|
6 |
1,130 lbs |
7' 5.25" |
5' 6" |
17" |
7' |
1,200 lbs |
7' 5.25" |
5' 6" |
17" |
8' |
1,270 lbs |
8' 5.25" |
5' 6" |
17" |
| Blade Width | Weight | Width | Length | Height |
|---|---|---|---|---|
6' |
1,110 lbs |
6' 5.25" |
5' 6" |
17" |
7' |
1,280 lbs |
7' 5.25" |
5' 6" |
17" |
8' |
1,350 lbs |
8' 5.25" |
5' 6" |
17" |
* Dual hydraulic cylinders for tilt struts available on special order.
Roller option available on CJ & CH series.
